AF-40BT

Personal Use

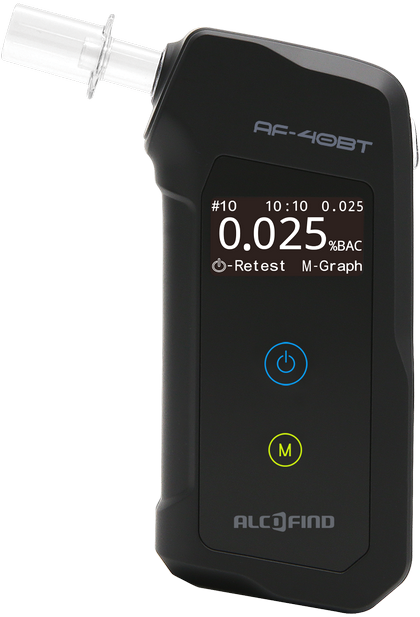

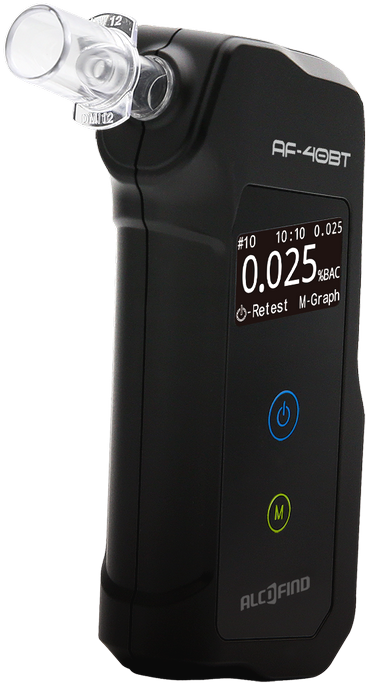

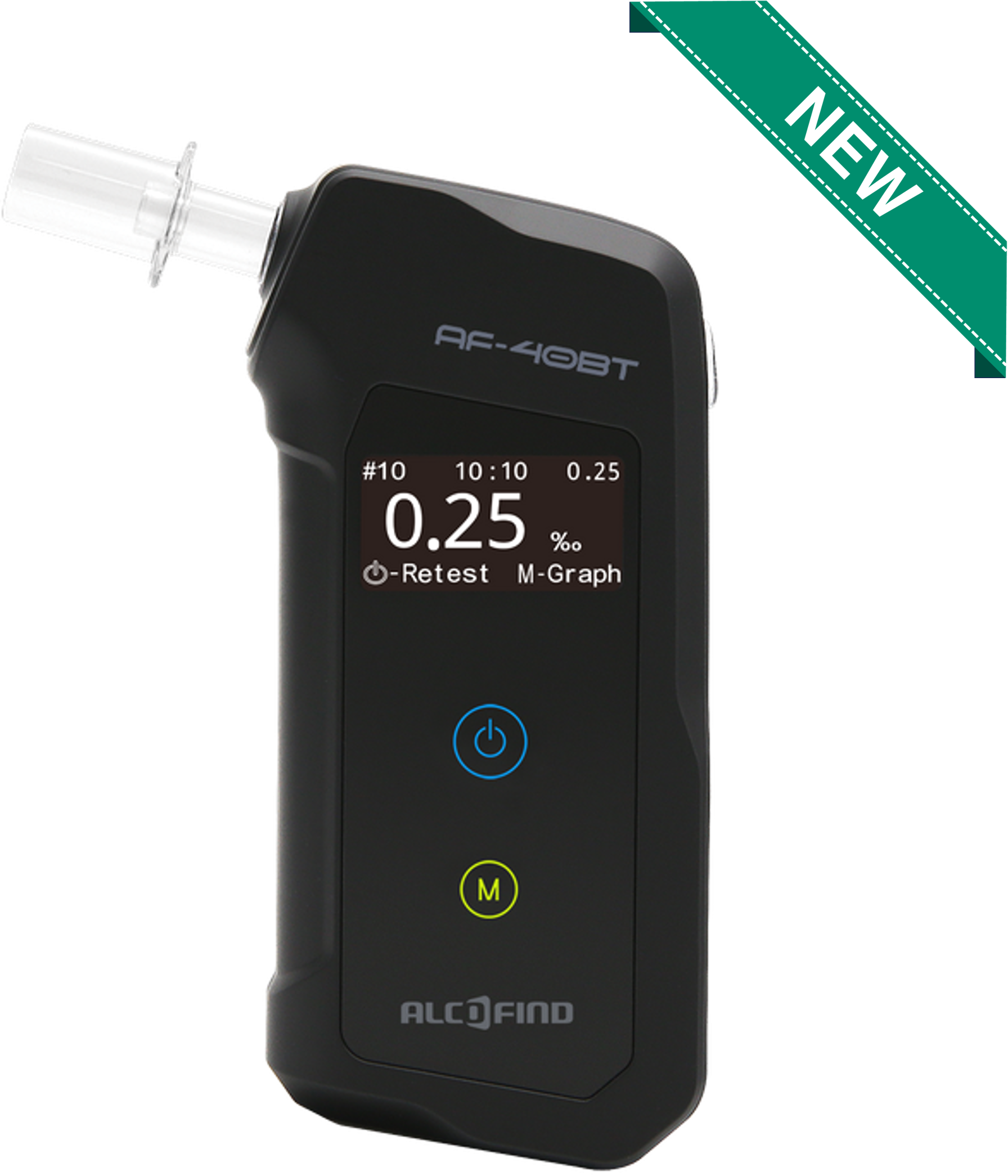

THE ALCOFIND AF-40BT, A NEW GAME-CHANGING PREMIUM BREATHALYZER, DELIVERS PROFESSIONAL-GRADE RELIABILITY

WITH WIRELESS COMMUNICATION


The ALCOFIND AF-40BT(Bluetooth) is a state-of-the-art product that features remarkable stability and professional-grade performance in a personal breathalyzer. This versatile device meets both personal and industrial needs. Along with its Premium Fuel Cell Sensor, the AF-40 delivers elite performance.


  • Faster: Approximately 2 seconds response time
  • Longer: Calibration period of up to 12 months
  • Wider: Operating temperature range of -5°C to 50°C



This lightweight handheld device features smart operations with an adjustable settings menu, battery level indicator, calibration reminder, and test records.

Users can manage the test results and logs in Alcofind Mobile Application via bluetooth.

Contents

- ALCOFIND AF-40BT Breathalyzer
- ALCOFIND Mobile application (iOS&Android)
- AAA Alkaline Battery x 2
- Mouthpiece x 6
- Hard-shell Carrying Case
- Instruction Manual

Key Features

- Premium fuel cell sensor

- OLED display

- Calibration period of up to 12 months

- Operating temperature range of -5°C to 50°C

- Store 10,000 test results with test number, date and time

- Adjustable user setting menu

- Calibration reminder

- Battery level indicator and notification

- Power saving function (automatic power off)

- Test number display

- Bluetooth Connectivity for Smartphone Integration

- Supports Two Operating Modes (Standalone Mode / App Mode )

  (Standalone Mode - Measurement directly on the device)

  (App Mode - Measurement via app integration)

Specification

Measurement range 0.000 ~ 0.500 %BAC
0.00 ~ 5.00 ‰
0.00 ~ 2.50 mg/L
Sensor Premium Fuel Cell Sensor
Accuracy ±0.005 %BAC (at 0.100 %BAC, at 25 ℃)
±0.05 ‰ (at 1.00 ‰, at 25 ℃)
±0.025 ‰ (at 0.50 ‰, at 25 ℃)
Analysis time
(at 25 ℃)		 Approx. 2 s (at 0.000 %BAC), approx. 6 s (at 0.050 %BAC) *Analysis time may vary depending on the test condition and environment.
Display OLED (128 x 64 pixel)
Operation mode Dual Mode (Standalone / APP)
Memory Stores up to 10,000 test results (Including test number, date, time, and result)
Power supply Two AAA alkaline batteries
Demensions
(W*H*D)		 54 x 116 x 23 mm
Wireless communication Bluetooth 5.0 LE
Weight 90 g (including batteries)
Calibration Period Every 12 months or after 1,000 tests
Operating temperature -5 ~ 50 ℃
