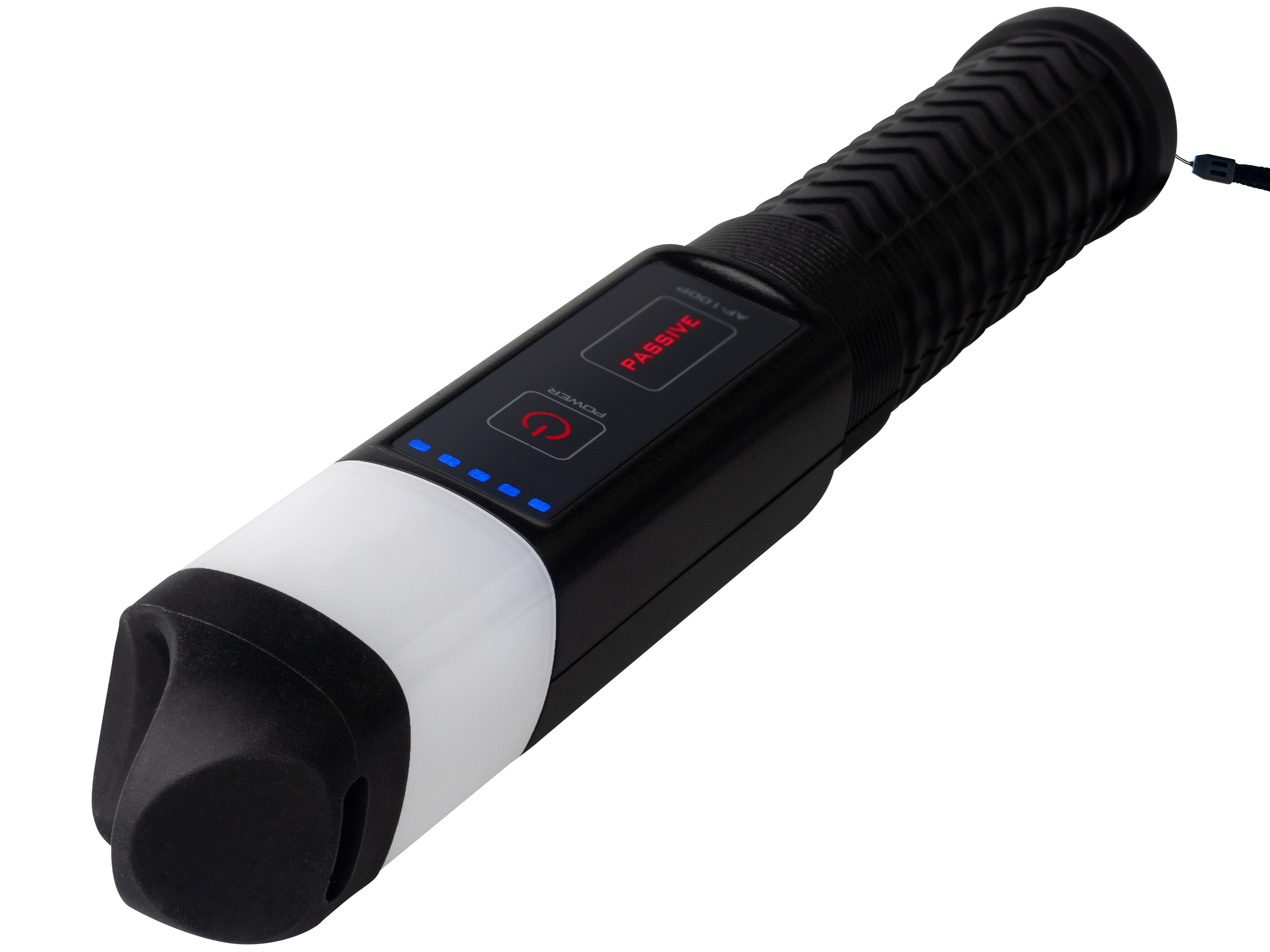

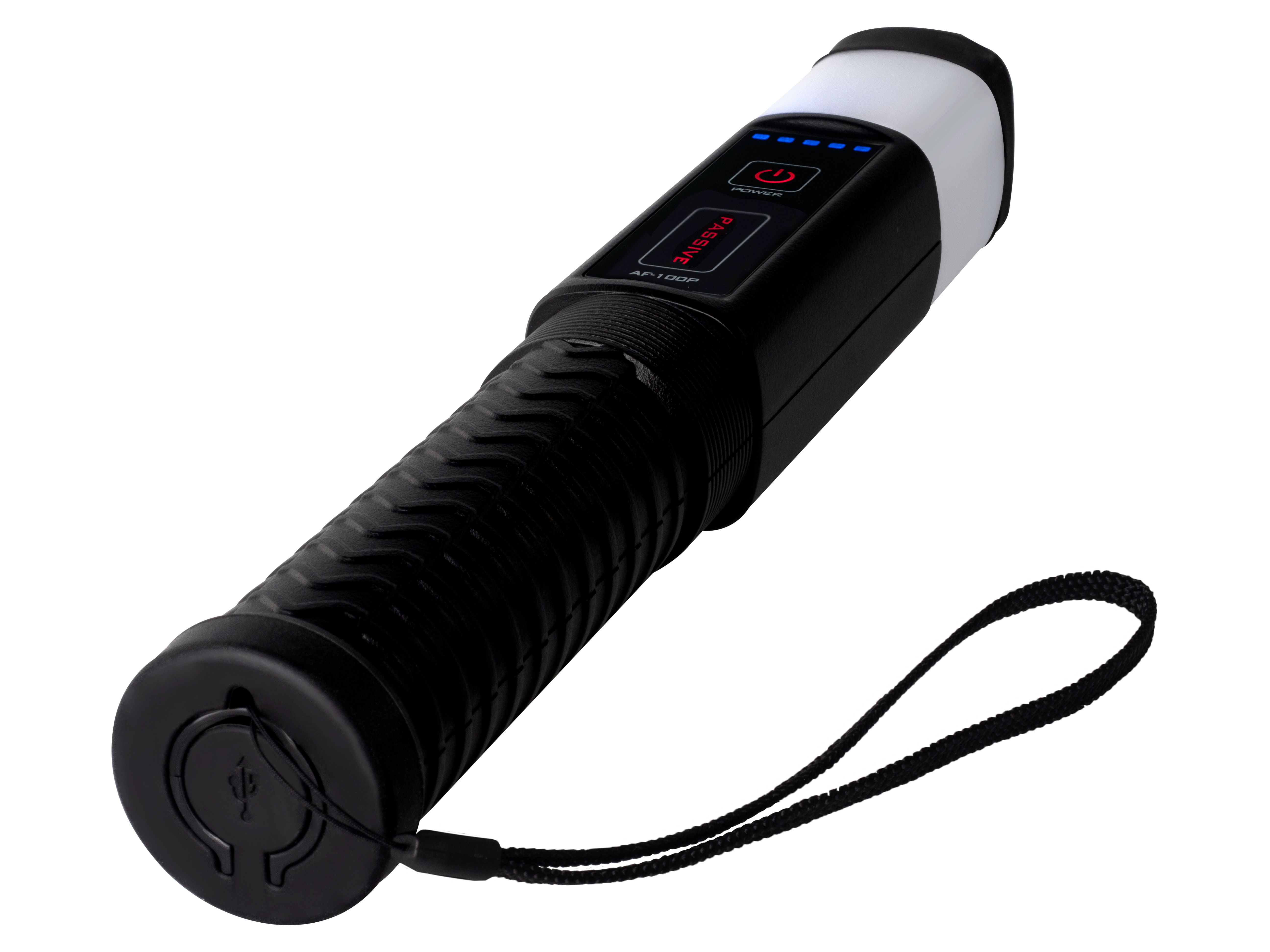

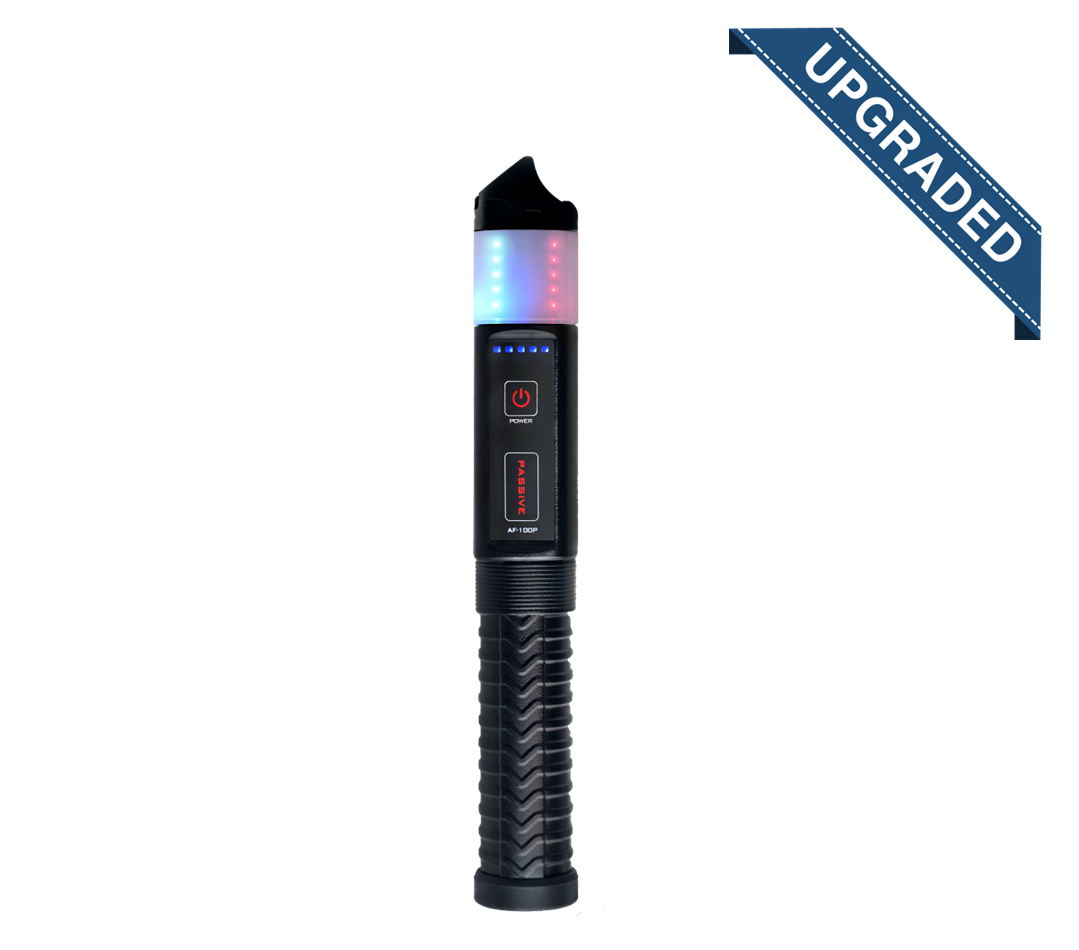

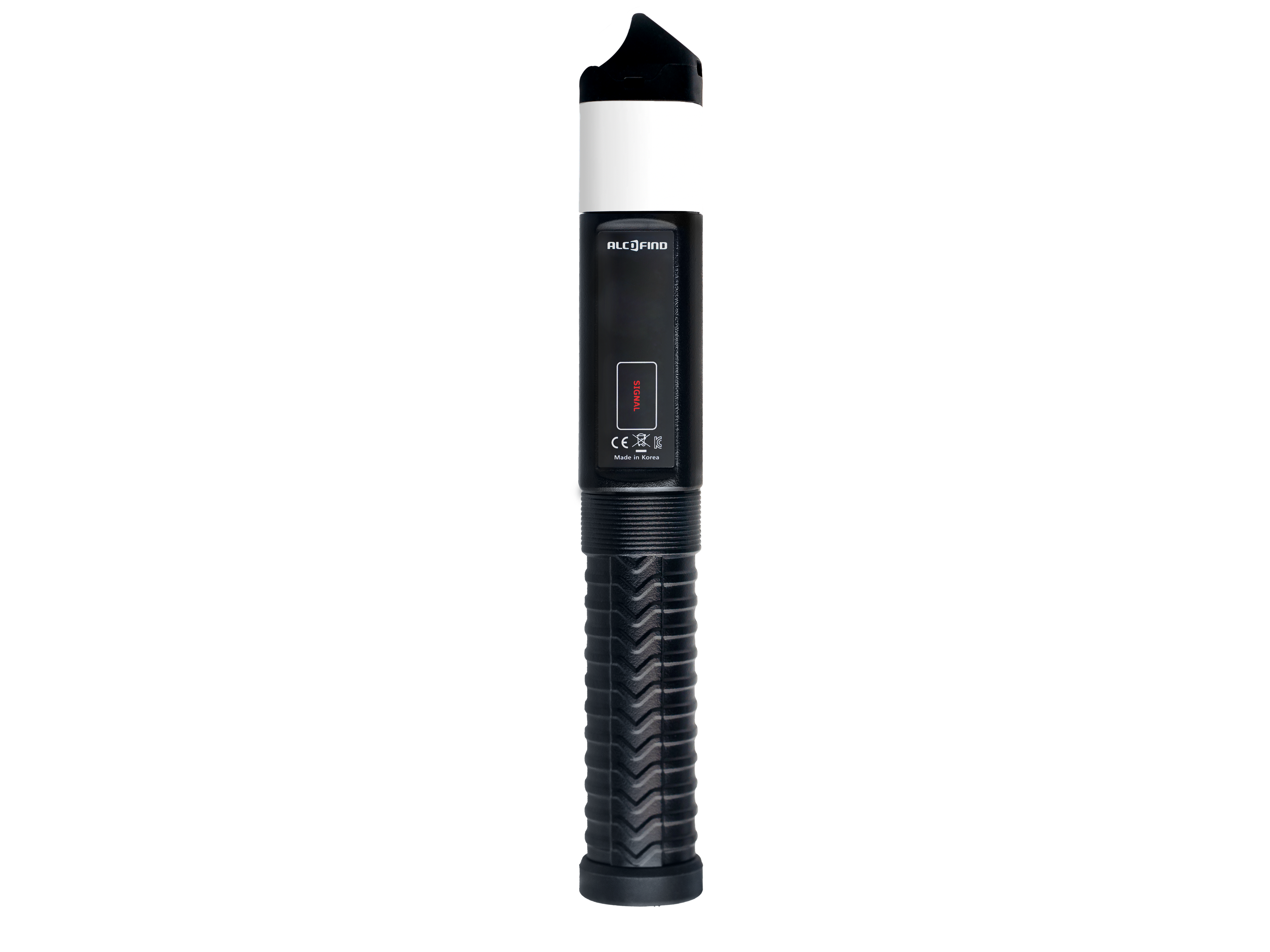

AF-100P
Professional UseALCOFIND AF-100, BEST-IN-CLASS SCREENING DEVICE FOR ROADBLOCKS AND WORKPLACE TESTING
ALCOFIND AF-100P, equipped with a professional Fuel Cell Sensor, is a specially designed screening device. The ergonomically designed blow cap protects the examiner from the subject's breath, offering flexible testing distances with Normal Test Mode (5-15cm) and Passive Test Mode (15-30cm), ensuring safe and comfortable testing in various situations.
Powerful free PC software is provided with an intuitive interface for comprehensive data management - store up to 4,000 test records connected via USB-C.
The AF-100P enables users to maintain an alcohol-safe work environment through high-efficient alcohol testing across various industrial sectors such as law enforcement, factory, plant, construction, mining and logistics sites.
Contents
- ALCOFIND AF-100P Breathalyzer
- Blow cap x 3
- USB-C cable
- Hand Strap
- Instruction Manual
Key Features
- Professional fuel cell sensor
- Ergonomically designed blow cap (protecting the examiner from the subject's breath)
- Fast test results
- Easy passive test
- Rechargeable battery
- LED flash lamp
- Calibration reminder
- Battery level indicator and notification
- Power saving function (automatic power off)
- Powerful PC Software
Specification
| Sensor | Professional Fuel Cell Sensor |
|---|---|
| Display | The status light: 10 LEDs for the display of the test results. The level indicator: 5 LEDs for the display of the total test number, the remaining calibration date, and the remaining battery level |
| Test Time / Cycle | Test Time : ~2 seconds @0.00%BAC,~4 seconds @0.05%BAC Test Cycle : ~15 tests/min @0.00%BAC, ~10 tests/min @0.05%BAC |
| Memory Capacity | Store 4,000 test results |
| Alarm Level | Alarm limit can be set to 5 different levels as below 0.010, 0.020, 0.030, 0.040 (%BAC) 0.10, 0.20, 0.30, 0.40, 0.50 (‰) 0.05, 0.10, 0.15, 0.20, 0.25 (mg/l) |
| Button | Three buttons - ON/OFF, PASSIVE, SIGNAL LAMP |
| Operating temperature | -10 ~ 40℃ |
| Power Supply | Rechargeable Lithium-ion battery (2,900mA) |
| Charging time | approx. 6 to 8 hours. * From full discharge to full charge |
| Duration Time | MAX. 16 hours at 25℃ * Battery life may vary depending on the operating temperature |
| Demensions | 275 mm, 40 Ø |
| Weight | 205 g |
| Calibration Period | Every 12 months |
| USB | USB C Type |
| PC Program | Dedicated PC software for measurement data logging and management * optional dongle required |
