AF-50AD

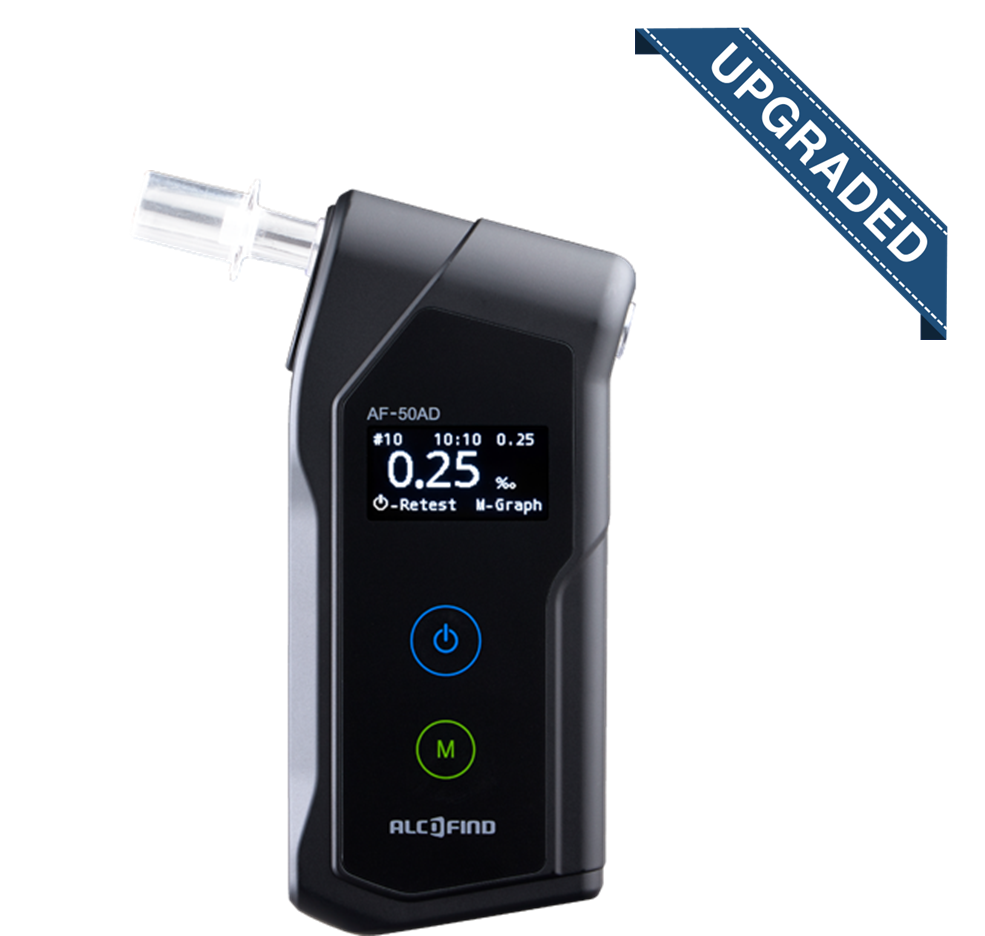

Industrial UseALCOFIND AF-50AD, a Premium Fuel Cell Sensor Professional Breathalyzer, is offering high-reliability and advanced features with Wireless Communication support.
The AF-50AD features quick 2-way mode change between Mouthpiece Mode and passive Funnel Mode.
Mouthpiece Mode supports Normal testing, End-of-Breath(EoB) testing and Mouth Alcohol Detection testing.
This device has an operating temperature range of -5°C to 50°C for extreme weather environment.
The AF-50AD supports wireless communications via Bluetooth with ALCOFIND Mobile Applications (iOS&Android), Printer and Powerful PC Software.
The AF-50AD is designed for use in law enforcement and various industrial applications.
Contents
- AF-50AD Digital Breathalyzer
- AA Alkaline Batteries X 2
- Mouthpieces X 6 (for Mouthpiece Mode)
- Funnel Mouthpieces X 3 (for Funnel Mode)
- Carrying Case
- Instruction Manual
- PC Software (download)
- Alcofind Mobile Application (iOS&Android download)
* AF-50AD - Professional Kit
- Mouthpieces X 20 (for Mouthpiece Mode)
- Funnel Mouthpieces X 5 (for Funnel Mode)
- Hard Protective Carrying Case
- Dedicated Bluetooth Printer
Key Features
- Premium Fuel Cell Sensor
- 2-way Quick Mode Change:
▷ Mouthpiece Mode: Display the actual concentration value by measuring accurate BAC
▷ Funnel Mode: Display PASS/FAIL passive testing result instantly
- Support Advanced Features:
▷ End-of-Breath Testing: analyzes the last portion of exhalation focusing more on lung breath
▷ Mouth Alcohol Detection: detects the presence of mouth alcohol, distinguishing it from actual lung breath alcohol, preventing false readings
- Extended Operating Temperature Range: -5°C to 50°C
- OLED display
- Store total 12,000 test results with test number, date and time
- Wireless Communication with Smartphone App and Dedicated printer through Bluetooth
- Manage and download test data and logs through the ALCOFIND software
- Adjustable User Setting menu
- Calibration reminder
- Battery level indicator and notification
- Power saving function (automatic power off)
- Test number display
Specification
| Sensor | Premium Fuel Cell Sensor |
|---|---|
| Measurement range | 0.000 ~ 0.500 %BAC 0.00 ~ 5.00 ‰ 0.00 ~ 2.50 mg/L |
| Accuracy (Mouthpiece Mode) |
±0.005 %BAC (at 0.100 %BAC, at 25 ℃) ±0.05 ‰ (at 1.00 ‰, at 25 ℃) ±0.025 mg/L (at 0.50 mg/L, at 25 ℃) |
| Warm-up Time | Within 5 seconds at 0.050 %BAC * Warm-up time may vary depending on the measurement condition. |
| Test Time / Test Cycle (Funnel Mode) |
Test Time : ~ 3 seconds @0.00%BAC Test Cycle : ~20 tests/min @0.00%BAC |
| Power supply | Two AA alkaline batteries |
| Test mode | Mouthpiece Mode ① Normal Mode ② Mouth Alcohol Detection Mode ③ EoB Mode Funnel Mode Funnel Mode |
| Memory Capacity | Mouthpiece Modes : 2,000 test results Funnel Mode : 10,000 test results * Total 12,000 test results in all modes |
| Measurement Units | %BAC, mg/100mL, ug/L, mg/L, ‰, and g/210L |
| Battery Life | Approximately 1,500 tests |
| Display | OLED (128 x 64 pixel) |
| Demensions (WxHxD) |
60 x 128 x 24 mm |
| Weight | 130 g (including batteries) |
| Calibration Period | Every 12 months or after 1,000 tests |
| Operating temperature | -5℃ ~ 50℃ |
| Wireless communication | Bluetooth 5.0 (supports connection with ALCOFIND App & Printer) |
